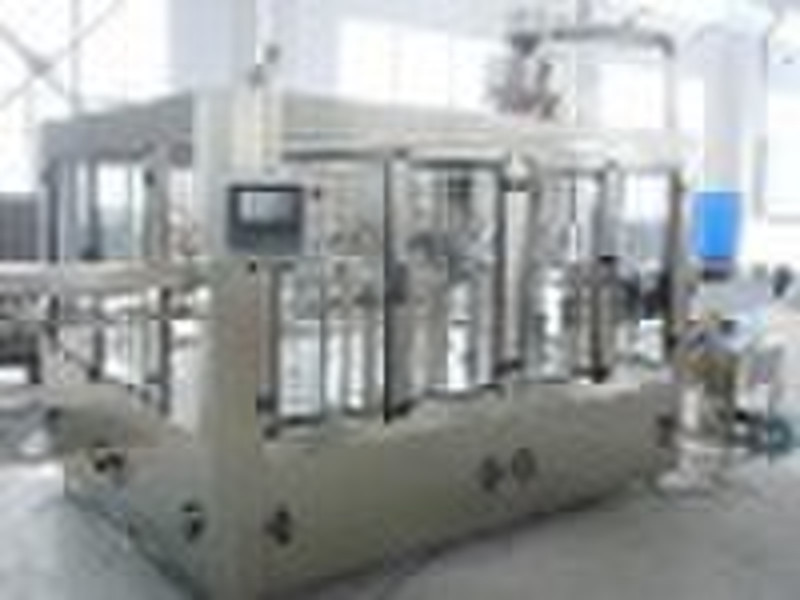

Monobloc Rinser Filler Capper

Monobloc Rinser Filler Capperis designed especially for rinsing , filling , capping non-carbonated drinks such as mineral water, pure water, wine. 1.The max. producing capacity of the machine is 36000 B/H ; 2.With the special designed filling valves,the machine can control the filling liquid level precisely ; 3.According to the requirement of refluence for the liquid , we use the Sanitary recycle system in the machine; 4.The entire CIP refluence system in the machine will ensure the rinsing effect; 5.For the PLC system in the machine, we will use the international famous brand such as Omron ,Keyence ,Mitsubishi.And also we will adopt the English MMI for the machine . ModelRFCRFCRFCRFCRFCRFC8-8-318-18-624-24-850-50-1860-60-2080-80-24Producing Capacity(500ml/B/H)2000-30005000-60008000-1000015000-1600018000-2000032000-34000Rinser Header81824506080Filler Valves81824506080Capper Header368182024Bottle TypeRound PET bottle or Square PET bottleBottle Diameter φ50mm-φ90mmBottle Height150mm-310mmFilling Precision±5mmCompresses Air Pressure0.3 Mpa -0.7 MpaRinsing Mediumsterile waterRinsing Water Pressure0.25 MpaTotal Power2.53.755.691115Dimension(mm)1900×1400×23002400×1900×23003010×2180×24005900×3100×24006500×3500×24006800×3900×2400Weight(kg)250035004200110001300015000
